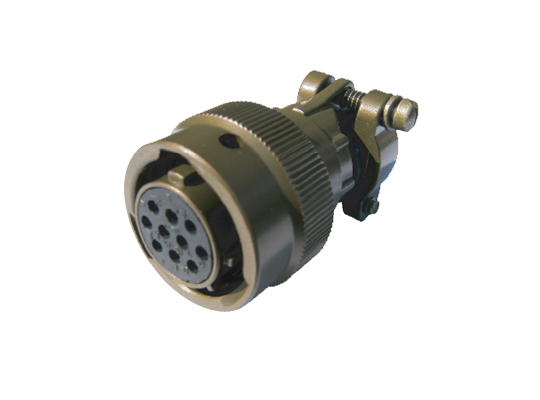

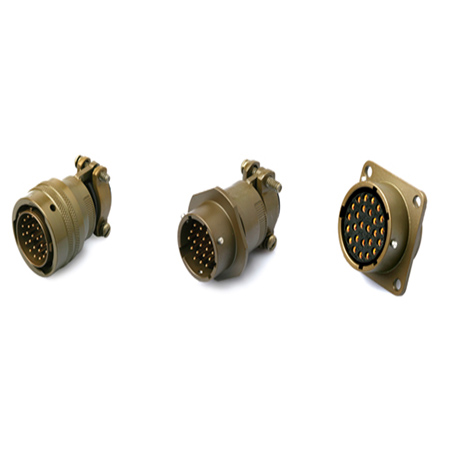

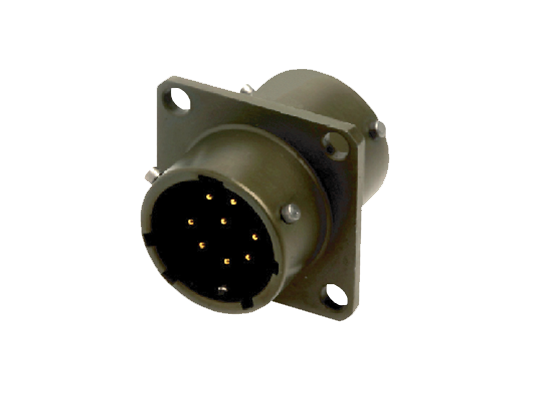

MIL-C-26482 MIL-C-26482 Series II / MIL-DTL-83723 Series I filter connectors   are designed to meet or exceed all applicable requirements of the   military specifications. The filter connectors are intermateable and   interchangeable with standard non-filtered connectors. Smiths Interconnect designs and manufactures a full spectrum of   sophisticated filter connector products. Our specialty is in the design   of interconnect solutions addressing EMI/RFI filtering, and transient   protection to meet demanding HIRF and Lightning requirements. In addition to MIL-Spec interface type products, many of our designs   are unique, built to conform to customer specifications requiring a   high level of integration, special packaging, and critical electrical   performance. Innovation is our distinction and our products address   a wide variety of applications. Our achievements lead the industry   in the design and manufacture of special filter connector products.

Our Design Strategy

       Smiths Interconnect¡¯s design strategy for filter connectors is based   on extensive experience with filter capacitor arrays and diodes. Our   engineers understand the extreme environmental conditions that can cause a filter or diode to fail or, worse yet, cause a system dysfunction. This design strategy is built on the foundation of system reliability and   the efficient use of available space. The capacitor array is protected   from thermally induced mechanical stresses by a barrier located   between the capacitor array surface and the epoxy filled region. This barrier isolates the epoxy and the ceramic array and prevents damage   to the array from the expansion influence of the epoxy.

Modularization

      Smiths Interconnect uses a disciplined design approach that employs methods of grouping multiple components into subassemblies wherever feasible. Such subassemblies may include a filter module, diode module, circuit assembly module and a transition interface assembly. Modularization results in cleaner, more standardized designs that provide flexibility in maintaining and upgrading the connector. An important advantage of modularization is that individual modules may be removed or replaced in the field without disturbing other subassemblies and components.

Integration

     There is considerable unused space available in a standard non-filtered connector. Smiths Interconnect takes advantage of this space by removing components from elsewhere in the system and integrating them within the connector, freeing up valuable board space. Isolating components electrically eliminates external wire connections and decreases crosstalk. The connector shell protects critical components from environmental or mechanical damage
